CICS-NC: RMM (Real-time Multivariate MJO) Index

Updated: 28 Oct, 2013

Archive

Wheeler and Hendon (2004) constructed the RMM index for monitoring the MJO. This index consists of the first two principal components (PCs) of OLR, 850-hPa zonal wind, and 200-hPa zonal wind averaged 15S-15N.

This page takes that simple index and breaks it down into its components, either by variable, longitude, or latitude. In each case, the original RMM emperical orthogonal functions (EOFs) are used, but only a subset of the data is projected onto them. All of these plots are re-standardized based on their 1980-2010 time series. This step is necessary for comparison because the OLR PCs, for example, have significantly lower amplitudes.

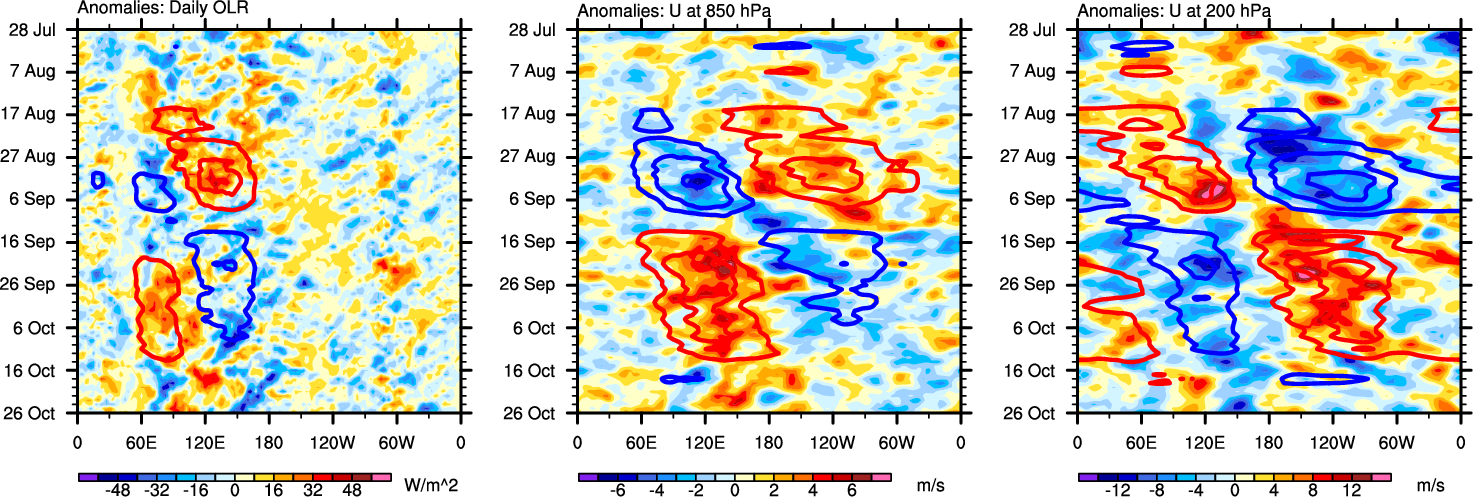

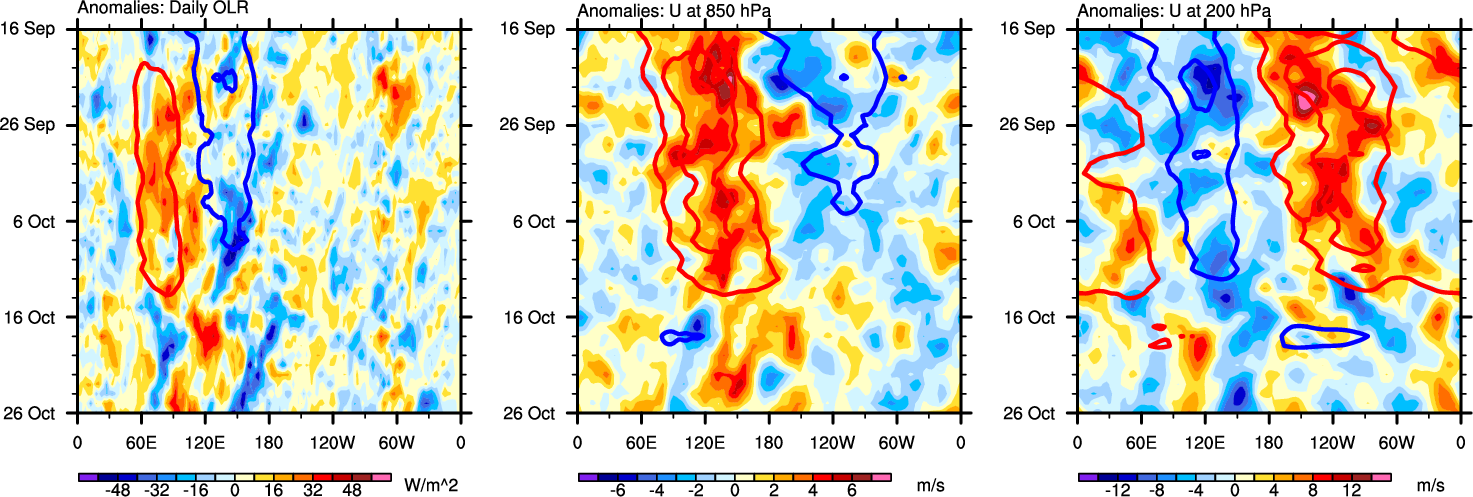

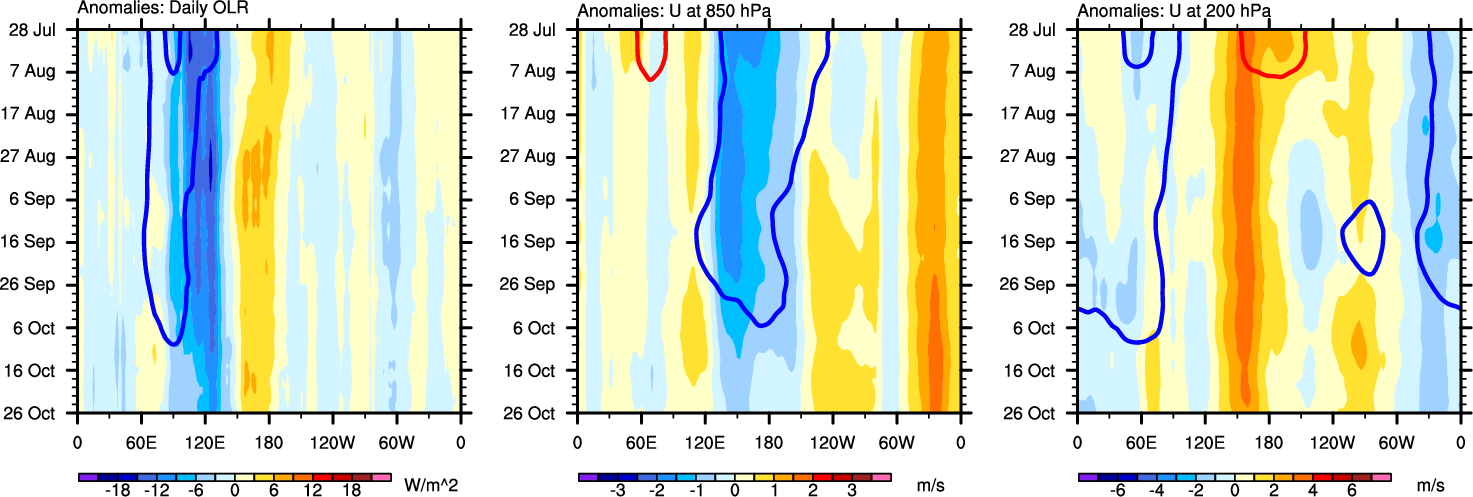

The Hovmollers show longitude-time plots for OLR, U-850, and U-200. The shading indicates the observed anomalies, while the contours are the projection of those anomalies onto the RMM EOFs.

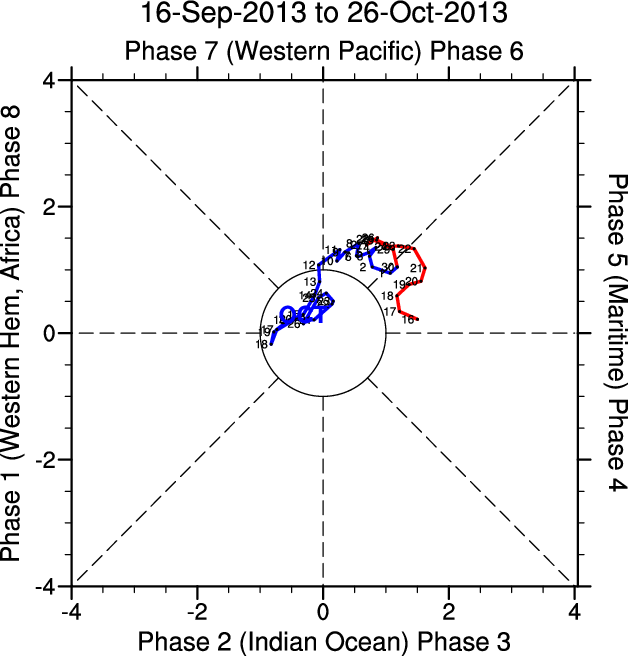

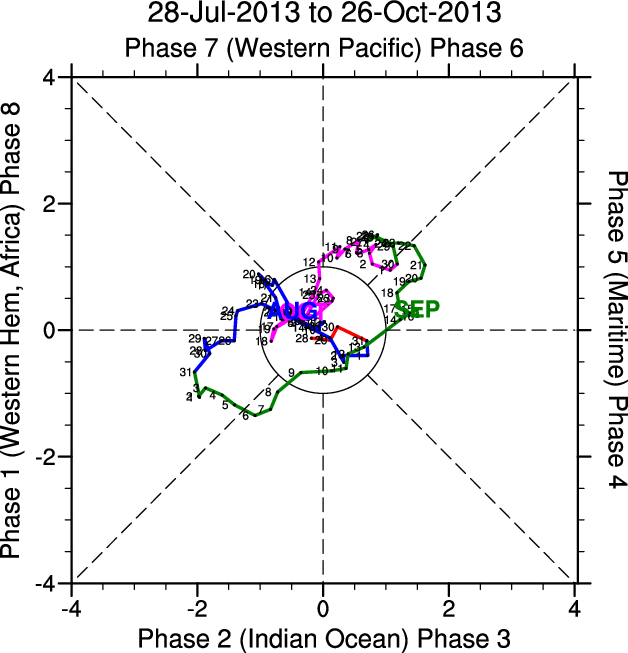

Total RMM 40 days 90 days

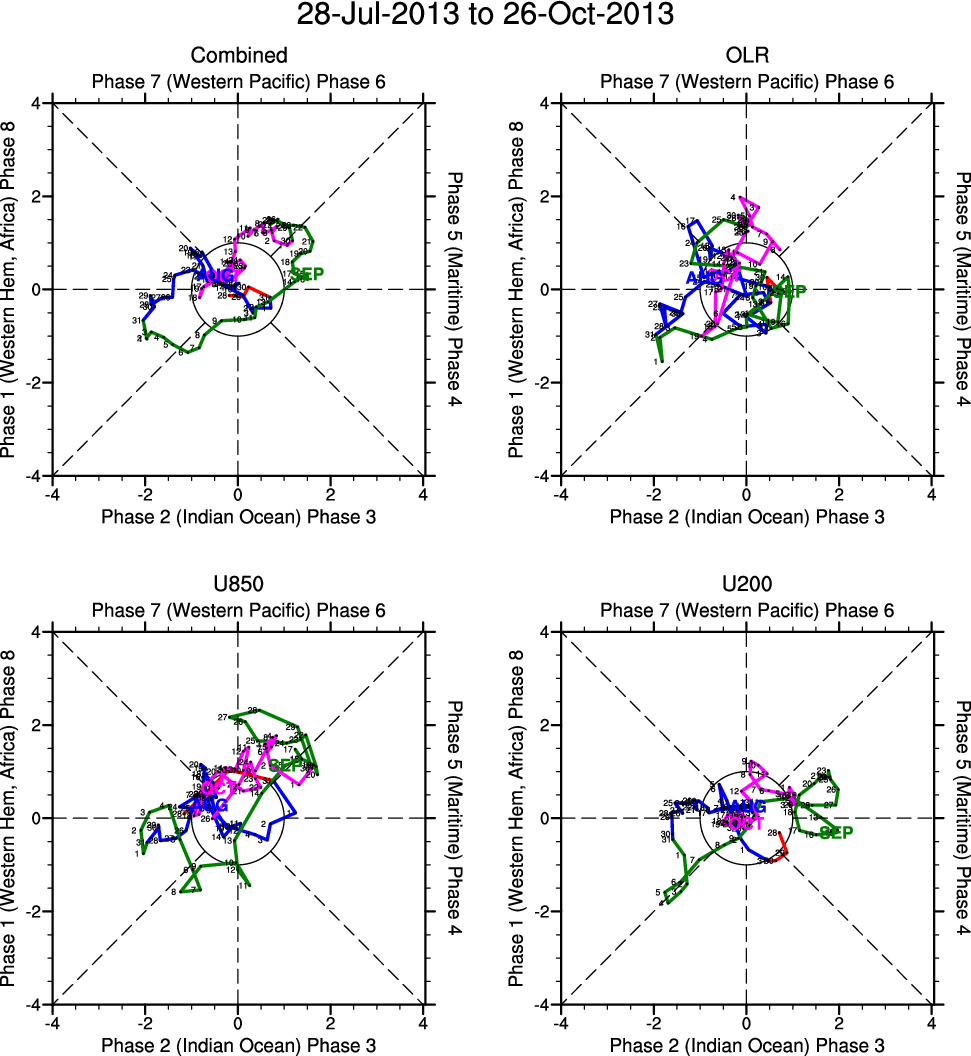

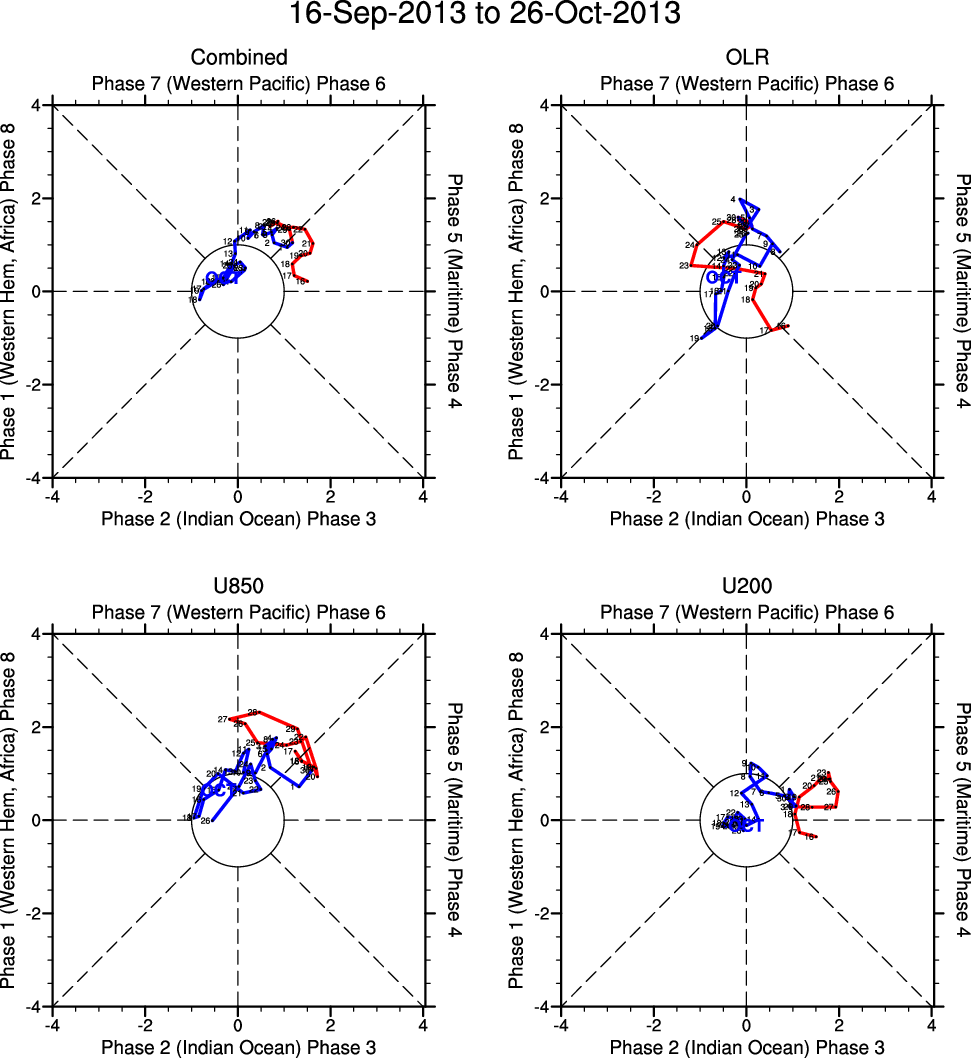

RMM by variable 40 days 90 days

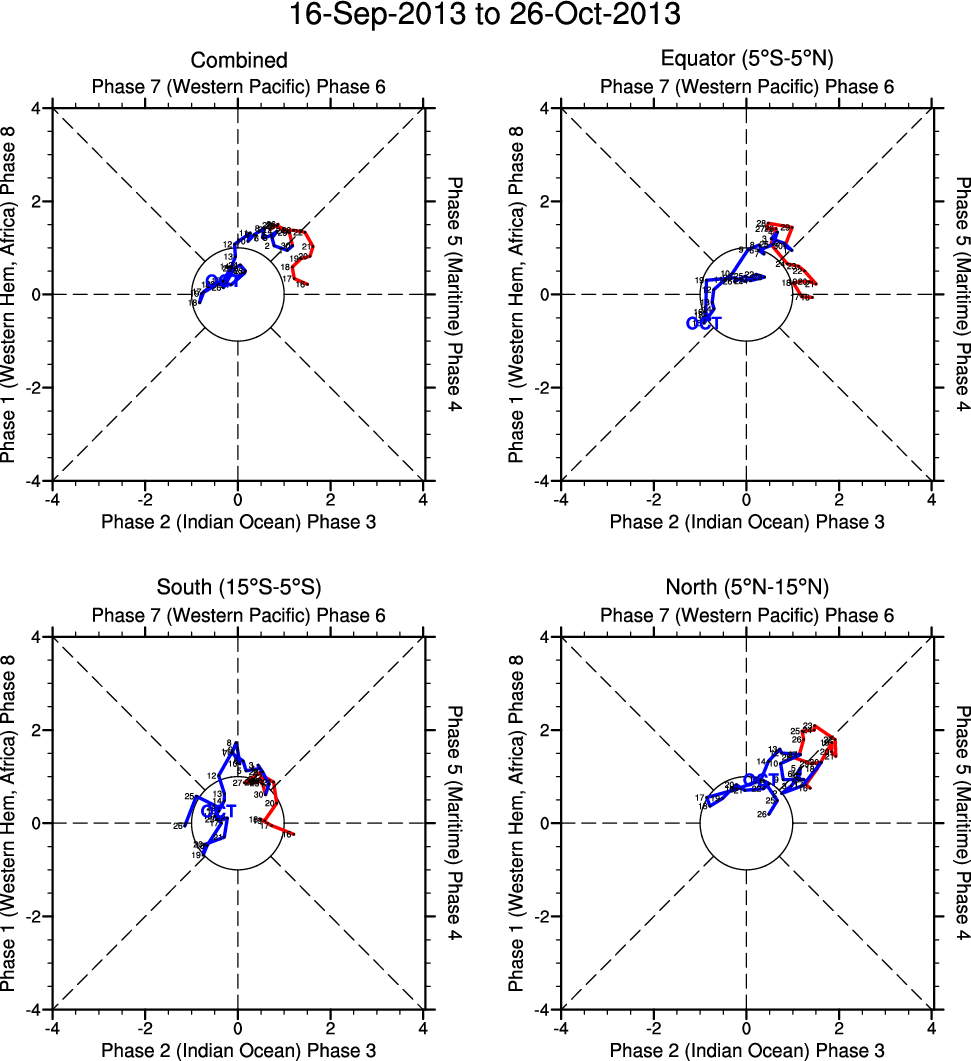

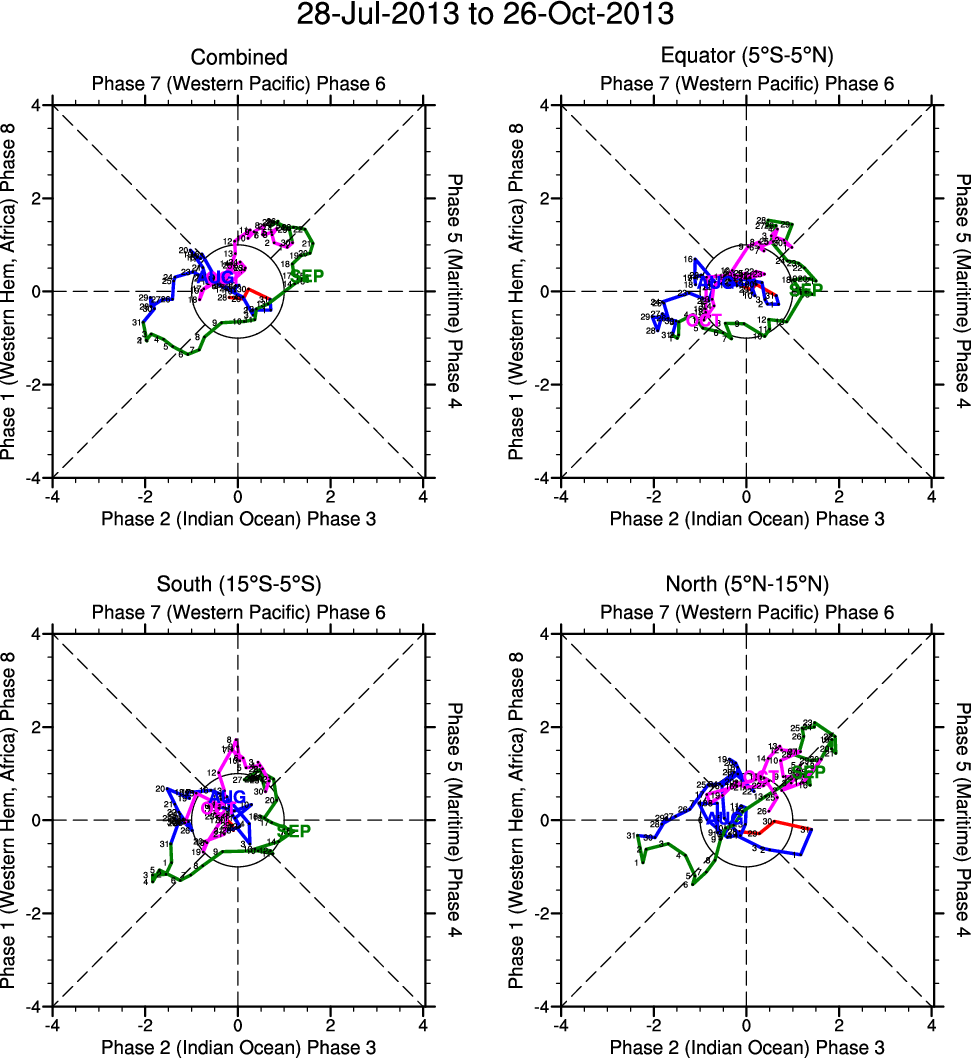

RMM by latitude 40 days 90 days

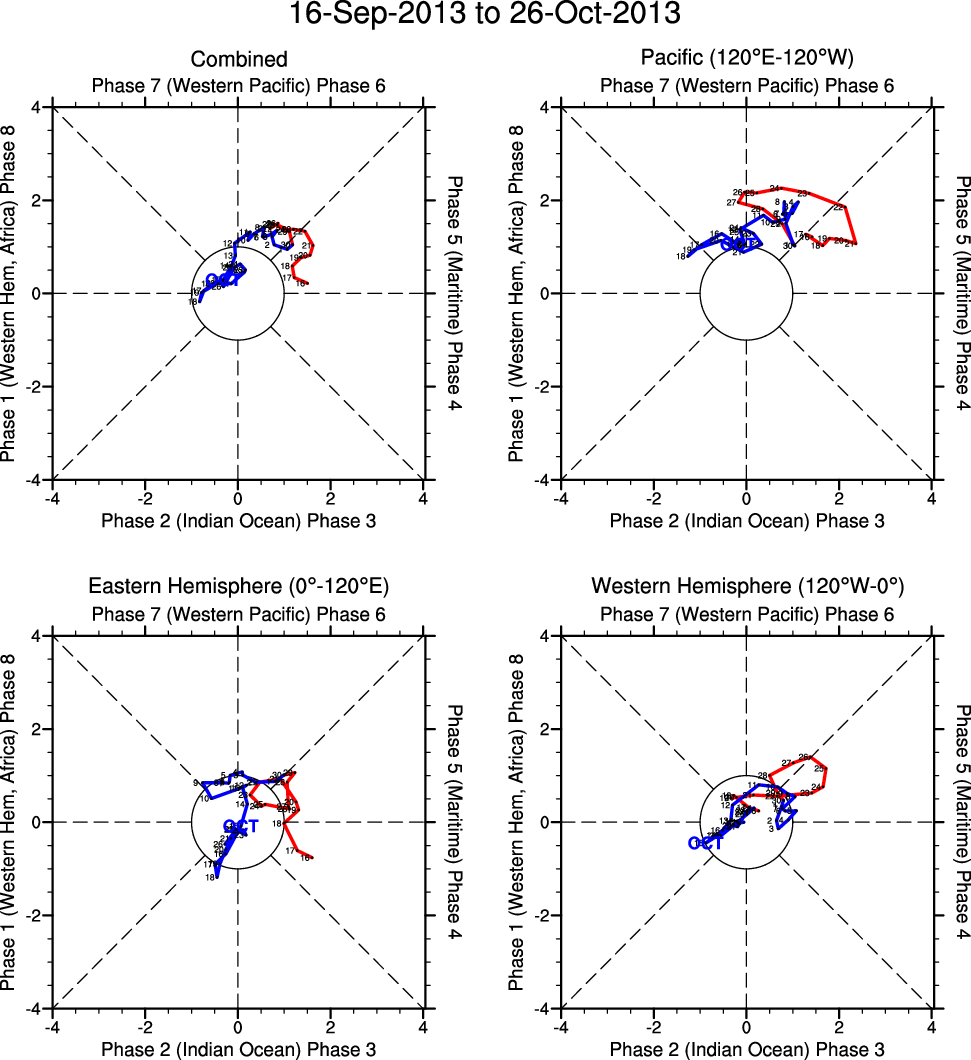

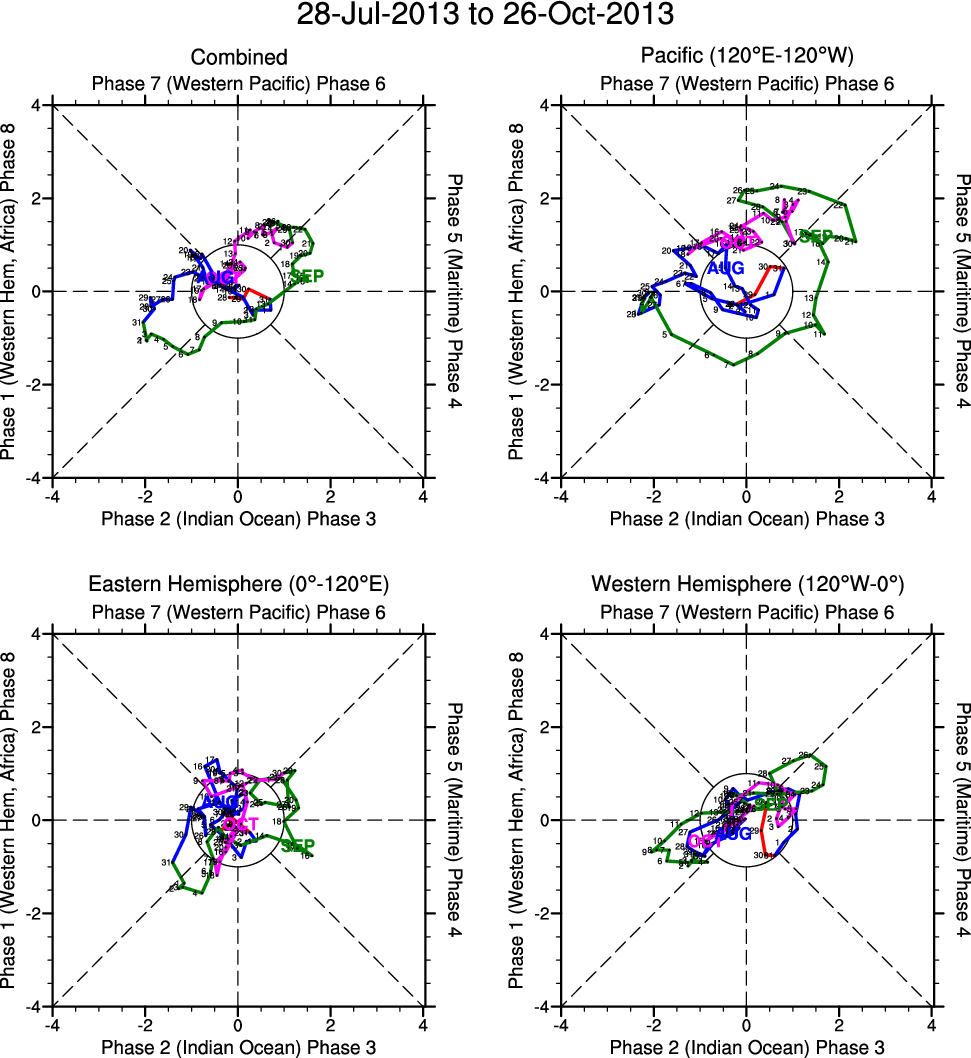

RMM by longitude 40 days 90 days

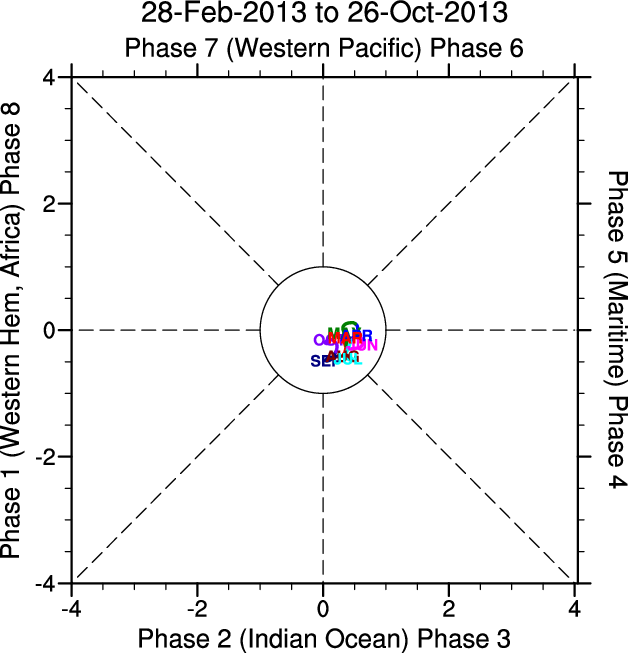

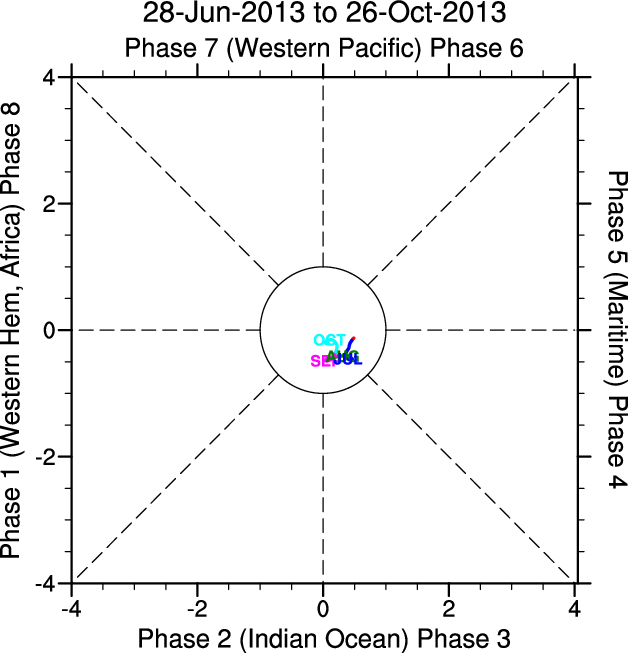

RMM of 120-day running average 120 days 240 days
Hovmoller with 120-day
mean removed
40 days 90 days

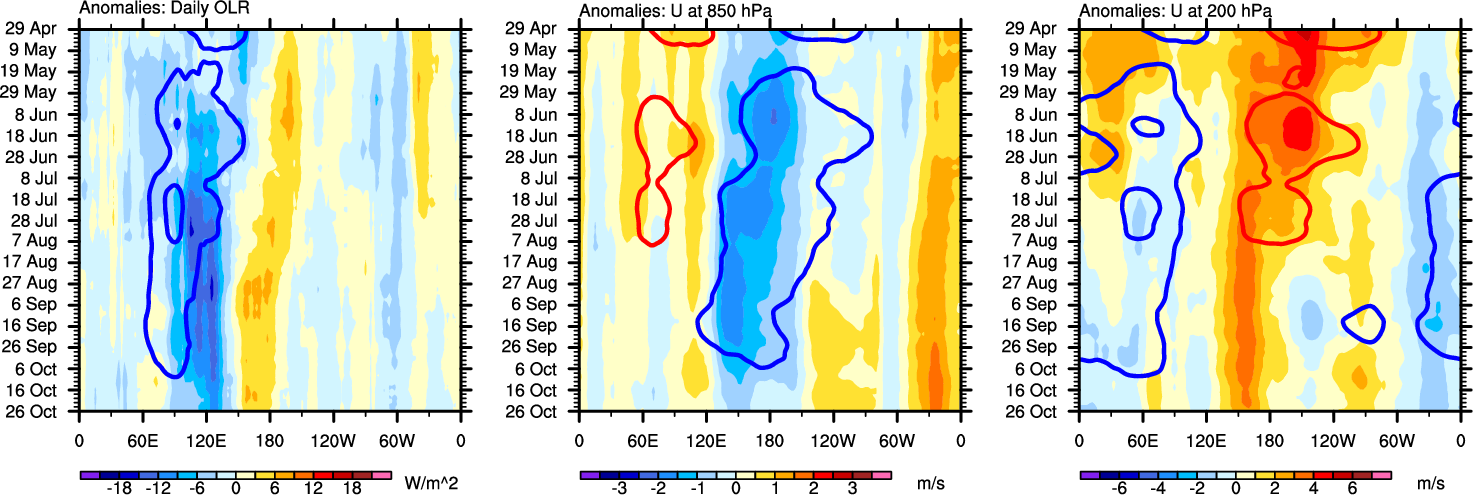

Hovmoller of 120-day
running mean
90 days 180 days
